WHL TRANSFER LINE
FIAT STABILIMENTO SATA MELFI (PZ)
Attività di installazione elettrica dell'intera linea, realizzazione del software PLC
e sviluppo dell'interfaccia grafica di supervisione.

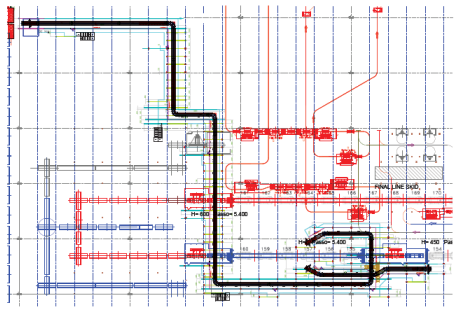

CARATTERISTICHE PRINCIPALI DELL'IMPIANTO
- sviluppo di circa 200 m di rulliera area
- 4 sistemi di trasferimento verticale
- 2 sistemi di ribaltamento ruote
- 1 quadro elettrico principale
- 7 quadri elettrici secondari
- 20 moduli di distribuzione periferici
- 1 postazione di supervisione
- 14 Operator Panel TP-177

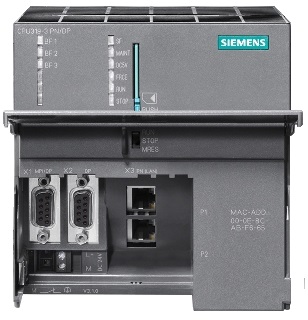

SIEMENS CPU S7-319F 3 DP/PN
The CPU 319F-3 PN/DP is the fastest S7-300 CPU with a large program memory.
It is ideally suited to plants with extensive automation tasks and stringent safety requirements.
It can be used as a PROFINET IO controller and as a standard PROFIBUS DP master in the SIMATIC S7-300.
The CPU 319F-3 PN/DP can also be used as distributed intelligence (DP slave).
Distributed I/O devices with fail-safe I/O modules can be connected over the three integrated interfaces.
The fail-safe I/O modules of the ET200M can also be used centrally for safety-related applications.
The integrated communication options of the CPU support networked automation solutions (also fail-safe) without
the need for additional components.

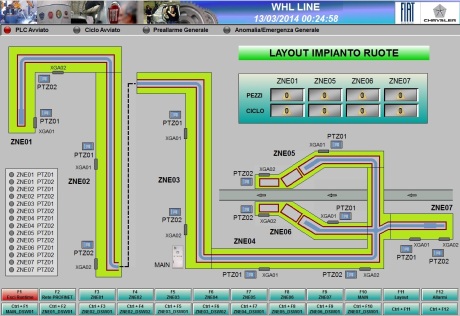

HMI SUPERVISOR PANEL
SIEMENS SCADA WINCC 7.2
